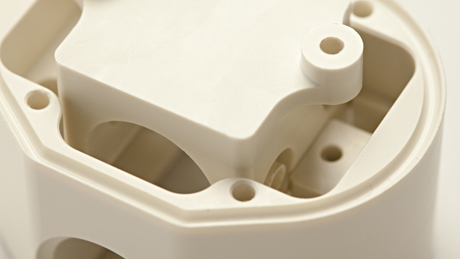

Bead housing insert

Material: PET RAL9001, 60 mm
Machine: Mazak QTN 250-II MSY/Mazak VCN 510C-II
Problem: oblique bore holes and accurately fitting complicated outlines
Solution: Segues are 3D-milled using TopSolid by Missler. Cutoff side is milled in a machining center and deburred when finished.
Particularities: The part is milled to its finished state in the turning machine.
Blending edges are deburred by TopSolid.
Surface state: Rz 6,3
Application: Emergency dialysis, Blood quantity measurements
